Compatible Sfp Modules 1.25G BIDI SFP 120KM Tx1490nm Rx1550nm 1000base

Product Categories
Sourcelight Technology Limited
Contact Now

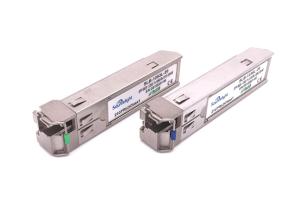

Compatible Sfp Modules 1.25G BIDI SFP 120KM Tx1490nm Rx1550nm 1000base

  • 1
  • 2

Brand Name : Sourcelight or OEM

Model Number : 1.25g bidi sfp 120km

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 10PCS or 20PCS Plastic trays; 1pc gift box.

Datarate : 1.25G BIDI SFP 120KM

Wavelength : TX1490NM/RX1550NM

Distance : 120KM

Transmitter : DFB Laser

Receiver : APD

Connector : Simplex LC/UPC

Contact Now

Compatible Sfp Modules 1.25G BIDI SFP 120KM Tx1490nm Rx1550nm 1000base

Overview

The SFP BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 120km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • 1490nm DFB laser and APD photodetector for 120km transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
  • Digital Diagnostic Monitoring:
  • Internal Calibration or External Calibration
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
  • Standard : 0 to +70°C

Parameter

Package (Form Factor) BIDI SFP
Data Rate (typical) 1.25 Gb/s
Centre Wavelength Tx1490nm/Rx1550nm
Distance 120km
Diagnostics Digital Monitor
Transmitter DFB Laser
Receiver APD photo detector
TX Output Power (dBm) 0~+5
RX Sensitivity (dBm) -30
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Simplex LC/UPC

Application
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Compatible Sfp Modules 1.25G BIDI SFP 120KM Tx1490nm Rx1550nm 1000base

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
