GLC-LH40-SM 1000BASE SFP Modules 40KM 1310NM 1.25 Gb/S Data Rate

Product Categories
Sourcelight Technology Limited
Contact Now

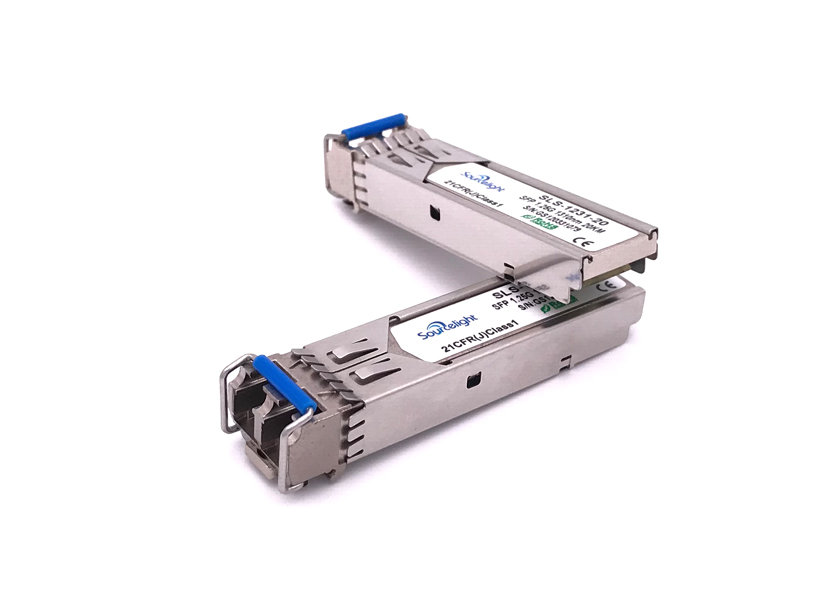

GLC-LH40-SM 1000BASE SFP Modules 40KM 1310NM 1.25 Gb/S Data Rate

Brand Name : Sourcelight or OEM

Model Number : GLC-LH-SM

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 10PCS or 20PCS Plastic trays; 1pc gift box.

Datarate : 1.25G

Wavelength : 1310NM

Distance : 40KM

Voltage Supply : 3.3v

Receiver : PIN photo detector

Connector : Duplex LC/UPC

Contact Now

GLC-LH-SM 1000BASE SFP 40KM Sfp Optical Transceiver 1310nm 40km

Overview

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Features

  • Data-rate of 1.25Gbps operation
  • 1310nm DFB laser and PIN photodetector for 40km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring:
  • Internal Calibration or External Calibration
  • Compatible with SONET OC-24-LR-1
  • Operating case temperature:
  • Standard : 0 to +70°C
  • Industrial : -40 to +85°C

Parameter

Package (Form Factor) SFP
Data Rate (typical) 1.25 Gb/s
Centre Wavelength 1310nm
Distance 40km
Diagnostics Digital Monitor
Transmitter DFB Laser
Receiver PIN photo detector
TX Output Power (dBm) -5~0
RX Sensitivity (dBm) -23
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC

Application
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

GLC-LH40-SM 1000BASE SFP Modules 40KM 1310NM 1.25 Gb/S Data Rate

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
